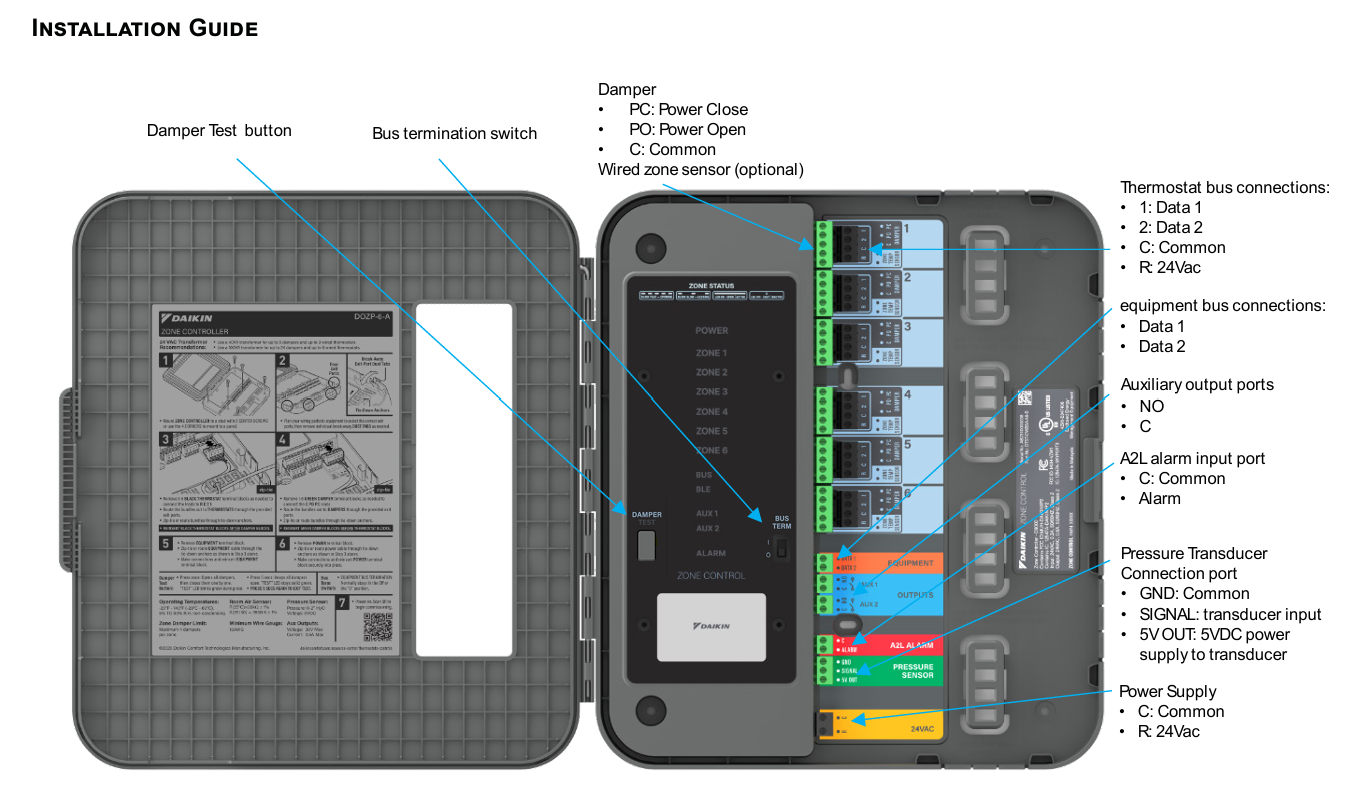

The new Daikin Zone Control Panel (DOZP-6-ADA-A) converts traditional single-thermostat HVAC systems into a multi-zone comfort solution for residential unitary R-32 communicating inverter ducted systems (Goodman SD).

Key Features & Capabilities

• Multi-Zone Control: Supports up to six independently controlled zones to eliminate hot and cold spots in single- and multi-story homes.

• Intelligent Capacity Matching: Dynamically adjusts heating/cooling output, airflow, and system capacity to match real-time zone demand for quiet, high-efficiency operation.

• Hardware Integration: Combines field-provided fully modulating dampers with wireless temperature and humidity sensors (DSEN-TH-BWS-A) for comprehensive climate control.

• SkyportCare Cloud Connectivity: Enables streamlined commissioning, remote monitoring, and service diagnostics with visibility into airflow, static pressure, and system behavior.

Compatibility & Requirements

• Compatible Thermostats:

  • Daikin ONE+ (DTST-CWBSA-NI-A, DTST-CWBSA-NI-B)

  • Daikin ONE Touch (DTST-TOU-A)

• Firmware Requirement: Requires thermostat software version 4.0.10 or newer.

• Incompatible Models: GTST-CW-WH-A is not compatible.
